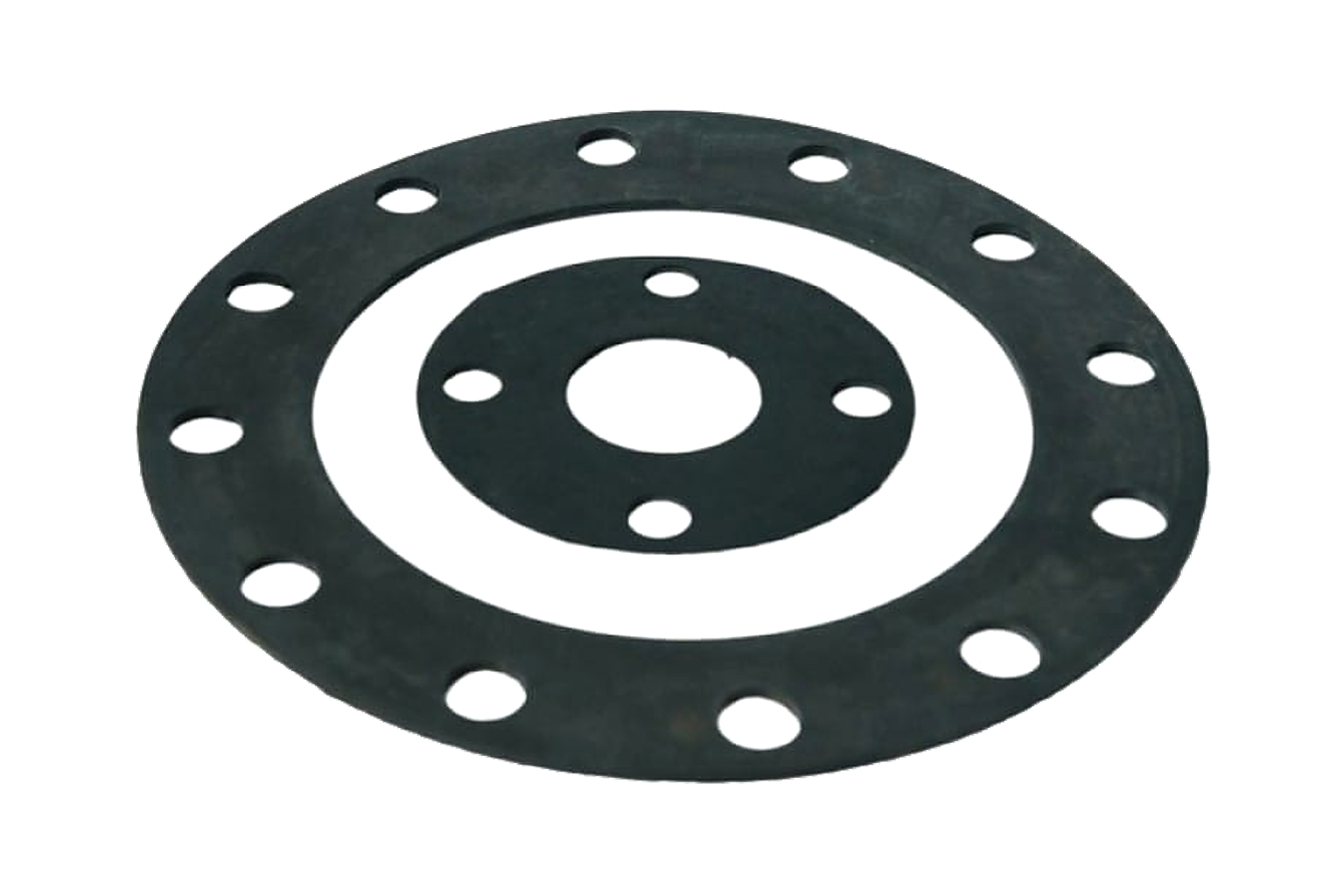

S.K. Fitting Valve supplies custom gaskets made to customers’ dimensions and drawings for sealing flange connections, covers and piping equipment. Shape, size, thickness and bolt-hole positions can be specified to match the component, with materials selected according to the fluid, operating temperature and pressure.
When is a custom gasket suitable?
- The flange or equipment has non-standard dimensions that do not match standard gaskets.
- A specific shape is required, such as an oval, rectangle, or profile with custom openings and bolt-hole positions.
- An existing machine requires a replacement gasket, but a matching ready-made part is unavailable.
- The equipment drawing specifies a material, grade or thickness that is not available in the standard product range.
Available Materials
Material options include NR, NBR and EPDM rubber, PTFE, Ferolite NAM 39 non-asbestos gasket material, and asbestos gasket material. Available dimensions, thicknesses and shapes depend on the selected material and the requirements of each order.
Information Required for a Quotation
- Drawing or photograph with dimensions — Provide a technical drawing or clearly dimensioned sketch. If you only have the existing gasket, send photographs so our team can advise which additional measurements are needed.
- Dimensions and shape — For circular gaskets, specify the inner diameter (ID), outer diameter (OD) and thickness. For other shapes, include the width, length and opening dimensions. State all measurements in millimetres.
- Bolt-hole details — Specify the number of holes, hole diameter and pitch circle diameter (PCD), or show the hole positions on the drawing.
- Material and grade — State the required material, brand or grade where specified.
- Operating conditions — Provide the fluid or medium, operating temperature and pressure, together with the flange standard and pressure class if known.
- Quantity and required delivery date — Include the number of pieces, required delivery date and contact details for the quotation.
Send your drawing and requirements to our team to confirm material availability, manufacturing feasibility, price and delivery time before placing an order.
